Capacity 250L Drug Stability Test Chamber Temp Control Range 0-65 ℃ Touch Screen

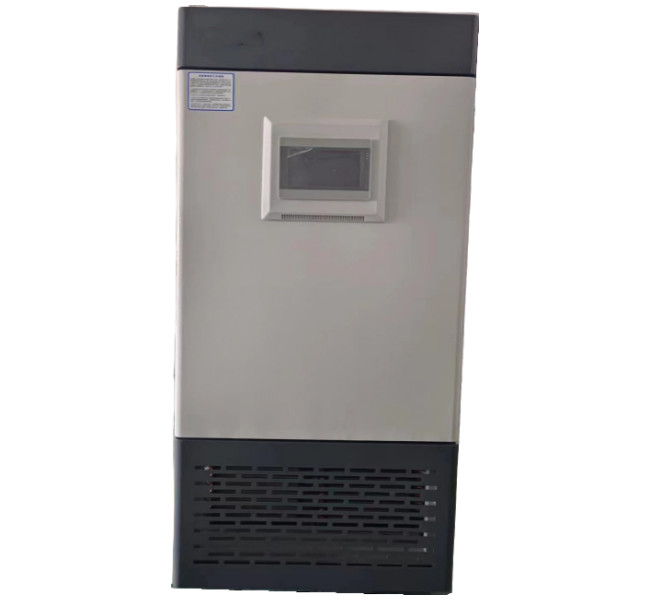

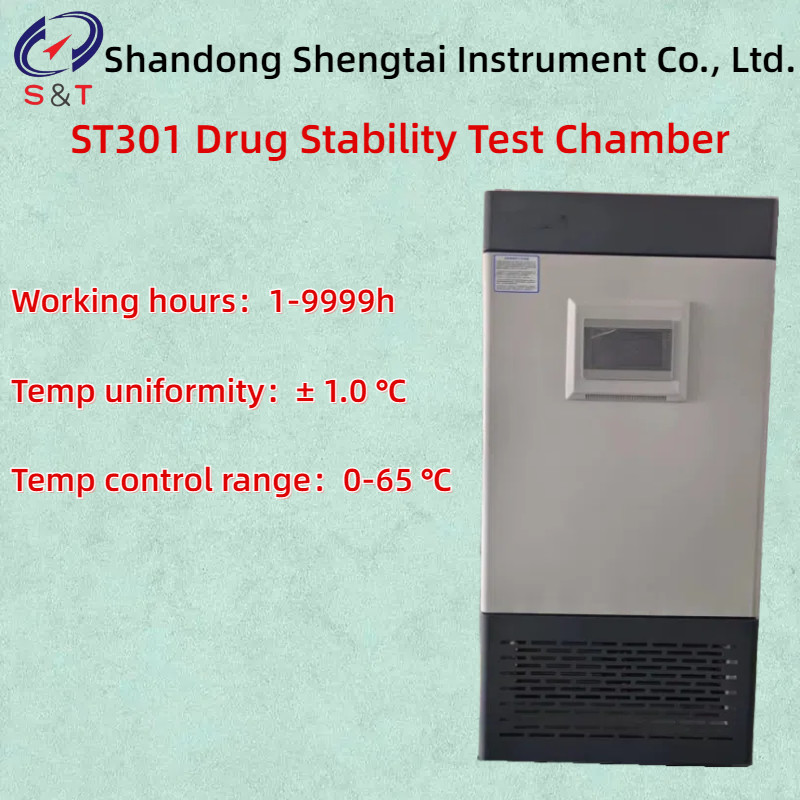

ST301 Drug Stability Test Chamber

The ST301 drug stability test kit is used in the pharmaceutical industry to conduct drug stability testing to determine the expiration date and influencing factors of drugs. The biggest advantages of this series of products include the ability to ensure stable and reliable testing results, precise temperature and humidity conditions, and an extremely long service life. The product meets the long-term, accelerated, and intermediate tests in the national pharmacopoeia, FDA, ICH, and other relevant standards, as well as the 40 ° C, 20% R.H low humidity tests for special drugs such as large infusion solutions.

Performance technical parameters

● Internal volume: 250L (other volumes can be customized)

● Temperature control range: 0-65 ℃

● Temperature control fluctuation: ± 0.5 ℃

● Temperature uniformity: ± 1.0 ℃

● Humidity control range: 20-90% RH

● Humidity uniformity: ± 3.0% RH

● Working hours: 1-9999h

● Temperature and humidity control: Balanced temperature and humidity control method

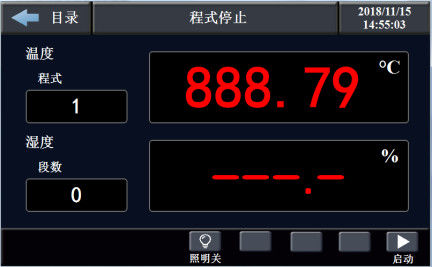

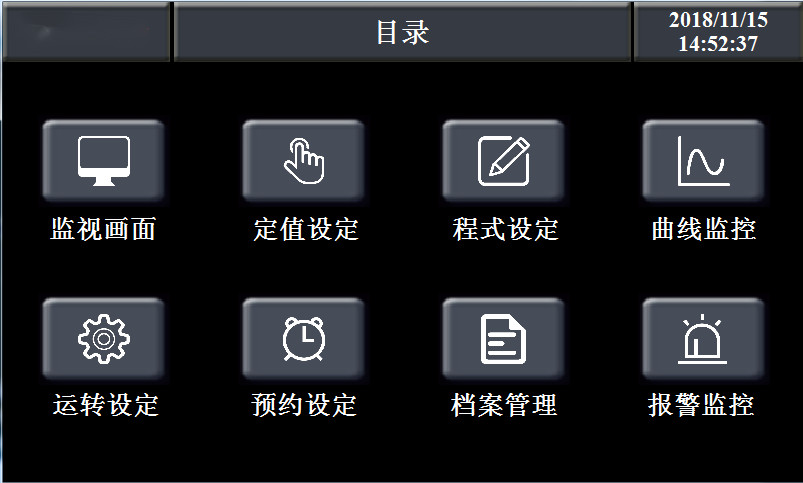

● Temperature and humidity display: 7-inch color touch screen

● Permission settings: Level 3 permissions: Operator, Administrator, Super User

● Data management: operation records, alarm records, historical records, etc

● Humidity sensor: Original imported Samsung capacitive humidity sensor, direct detection, no maintenance required

● Refrigeration compressor: original imported double fully enclosed compressor, long life, low noise; One backup, one use, or alternate operation

● Data printing: Equipped with a standard needle printer, it can print the model and number of the device, as well as temperature and humidity values

● Studio size: 550 * 500 * 890mm

● Dimensions: 740 * 850 * 1680mm

● Power: 850W

● Data storage: internal storage (the controller can store electronic text data for more than 5 years); It is also possible to record and store data through an external PC computer

● On site alarm: on-site temperature and humidity deviation sound and light alarm, independent over temperature alarm

● Box material: The inner liner material is mirror stainless steel 304, and the outer shell material is high-quality steel plate sprayed with plastic

● Double door structure: equipped with a tempered glass door for easy observation; The outer door is fully enclosed, blocking the influence of external light

● Dual protection: equipped with dual insurance to prevent dry burning protection; Configure an independent over temperature protection system that can automatically cut off the power supply

● Safety devices: compressor overheating, fan overheating, overtemperature, compressor overpressure, overload protection

● Install power supply: AC 220V ± 10% 50HZ

● Environmental temperature: Room temperature+5-35 ℃

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate:

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
